Green vs Magenta needle on VOR Approach

///AMG said:
You talking about the endless dashed green radial line it will draw out and you can't get rid of?
Click to expand...
Yep. I mean how it works is obvious, but why do some aircraft do it and some don’t? Is there a way to get rid of it other than de tuning the VOR? These are the questions that plague men’s minds at 2 AM over Nebraska.

Roger Roger said:
Yep. I mean how it works is obvious, but why do some aircraft do it and some don’t? Is there a way to get rid of it other than de tuning the VOR? These are the questions that plague men’s minds at 2 AM over Nebraska.
Click to expand...
We just throw 108.0 in there when a frequency isn’t needed.

Ian_J said:
We just throw 108.0 in there when a frequency isn’t needed.
Click to expand...
Sure, easy enough. Or just tune the loc for the destination. But like I said, on long flights I often keep in the habit of having a bearing pointer up and on the jjjjeeeetttts that display the course line it’s a little annoying, and it’s even weirder that our manuals don’t talk about it (well, not that weird with how dumbed down everything is these days). If you haven’t run into it, here’s a picture:

I’ve pressed every button and switch on the nav radio and display controller and on the planes that have it none of them make it go away, but it’s not on all the Max’s.

Last edited:
Roger Roger said:
Sure, easy enough. Or just tune the loc for the destination. But like I said, on long flights I often keep in the habit of having a bearing pointer up and on the jjjjeeeetttts that display the course line it’s a little annoying, and it’s even weirder that our manuals don’t talk about it (well, not that weird with how dumbed down everything is these days). If you haven’t run into it, here’s a picture:
View attachment 79364
I’ve pressed every button and switch on the nav radio and display controller and on the planes that have it none of them make it go away, but it’s not on all the Max’s.
Click to expand...
Nobody’s going to let me near their 737 Max anytime soon but I think this stuff is fun so I’ll take a shot. :)
Looks like this has been asked before and it supposedly is controlled by the Radial/Distance (RAD/DIS) line on the Fix page in the FMC.
aviation.stackexchange.com

What is that green dashed circle on ND?

I think this is a navigation display from a boeing aircraft I searched around the internet for the meaning of the "green dashed circles" but got nothing. Thanks in advance for your answers!
aviation.stackexchange.com aviation.stackexchange.com

If it’s tied to the individual fix I wonder if you can clear it out or do “0/0” or “ / “ or something like that without affecting your route/flight plan?

inigo88 said:
Nobody’s going to let me near their 737 Max anytime soon but I think this stuff is fun so I’ll take a shot. :)
Looks like this has been asked before and it supposedly is controlled by the Radial/Distance (RAD/DIS) line on the Fix page in the FMC.
aviation.stackexchange.com

What is that green dashed circle on ND?

I think this is a navigation display from a boeing aircraft I searched around the internet for the meaning of the "green dashed circles" but got nothing. Thanks in advance for your answers!
aviation.stackexchange.com aviation.stackexchange.com

If it’s tied to the individual fix I wonder if you can clear it out or do “0/0” or “ / “ or something like that without affecting your route/flight plan?
Click to expand...
Nope. This is same symbology but tied to the VOR not the fix page

Roger Roger said:
Sure, easy enough. Or just tune the loc for the destination. But like I said, on long flights I often keep in the habit of having a bearing pointer up and on the jjjjeeeetttts that display the course line it’s a little annoying, and it’s even weirder that our manuals don’t talk about it (well, not that weird with how dumbed down everything is these days). If you haven’t run into it, here’s a picture:
View attachment 79364
I’ve pressed every button and switch on the nav radio and display controller and on the planes that have it none of them make it go away, but it’s not on all the Max’s.
Click to expand...
Yeah, that’s every one of our 73s… like I said, we don’t tune a VOR unless required and thus no dotted line.

Out of curiosity, why do you select a freq and turn on the VOR bearing on long flights?

Roger Roger said:
I often put a VOR bearing pointer up to something generally ahead of the airplane when doing transcons. Literally every captain I’ve flown with has been like “wtf are you doing”. I even found a functionality on some of the max’s that our books don’t mention and no one has been able to explain to me.
Click to expand...
I just saw this… the green dotted line off the VORs can be very functional. As an example, it’s great for visualizing an engine out procedure.

Ian_J said:
Yeah, that’s every one of our 73s… like I said, we don’t tune a VOR unless required and thus no dotted line.

Out of curiosity, why do you select a freq and turn on the VOR bearing on long flights?
Click to expand...
Why not? If nothing else, it’s entertaining to see just how far off most of the VOR receivers are despite passing the built in check every day.

Roger Roger said:
Why not? If nothing else, it’s entertaining to see just how far off most of the VOR receivers are despite passing the built in check every day.
Click to expand...
neometrixgroup.com

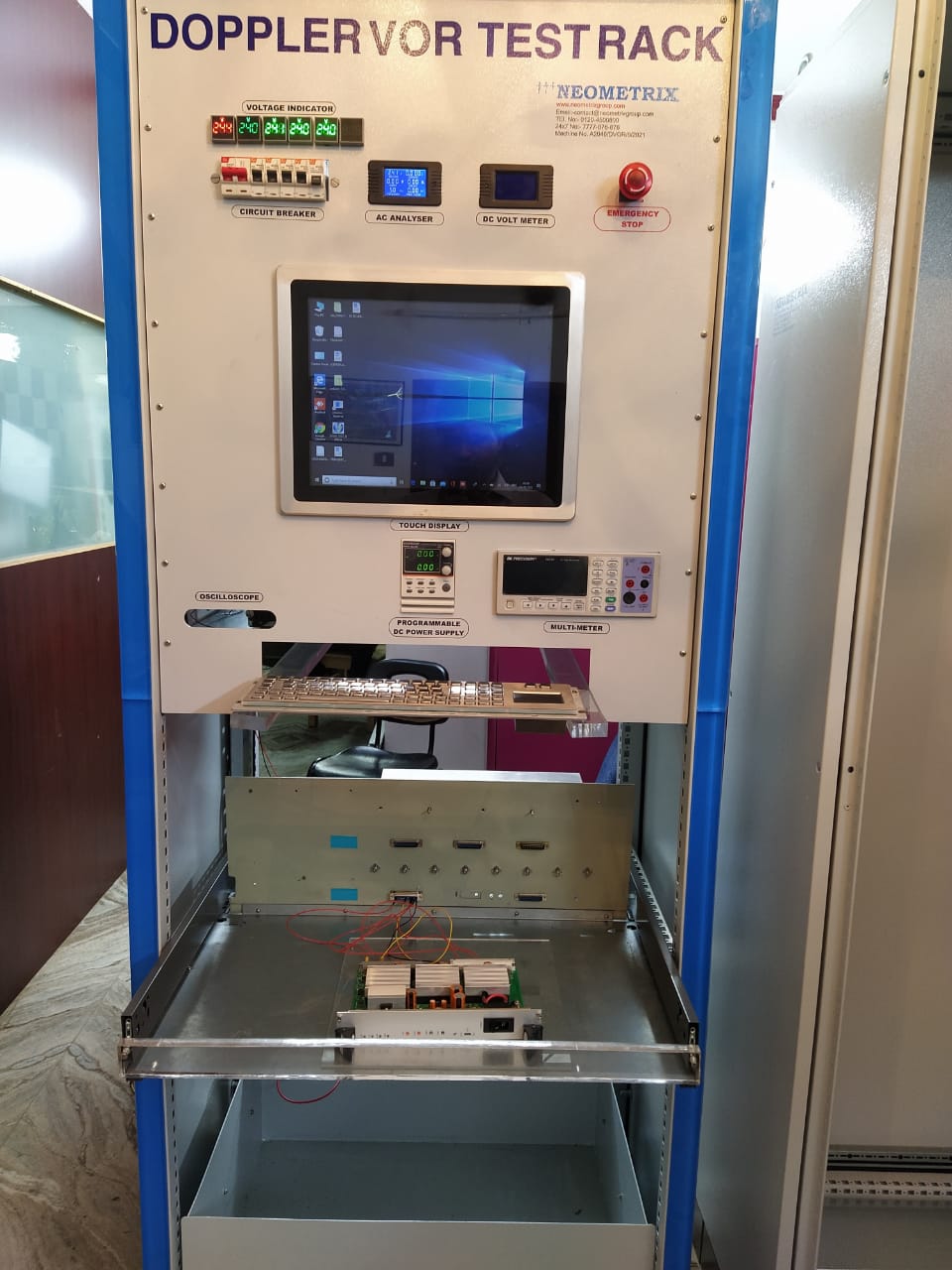

DOPPLER VOR TEST RACK

This is user/operator manual of DVOR TEST BENCH. This manual has complete description of the system for operation point of view.This manual brief about the testing of DVOR MODULES and their interconnections.
neometrixgroup.com neometrixgroup.com

Ian_J said:
Yeah, in general practice we use both. Fix page for distance and the VOR bearing pointers for courses and because we have to have them up anyway for eng out procedures.
Click to expand...
As a guess, better than half of ours reference FMC waypoints so if we display it on the screen (not everyone does since we have the procedures in the FMC) we use the fix page for everything including any VOR course/distance. But like I said it seems like most reference waypoints so the VOR radial function would be useless for that.

Roger Roger said:
As a guess, better than half of ours reference FMC waypoints so if we display it on the screen (not everyone does since we have the procedures in the FMC) we use the fix page for everything including any VOR course/distance. But like I said it seems like most reference waypoints so the VOR radial function would be useless for that.
Click to expand...
is the depicted radial reflecting the course set in your window?
